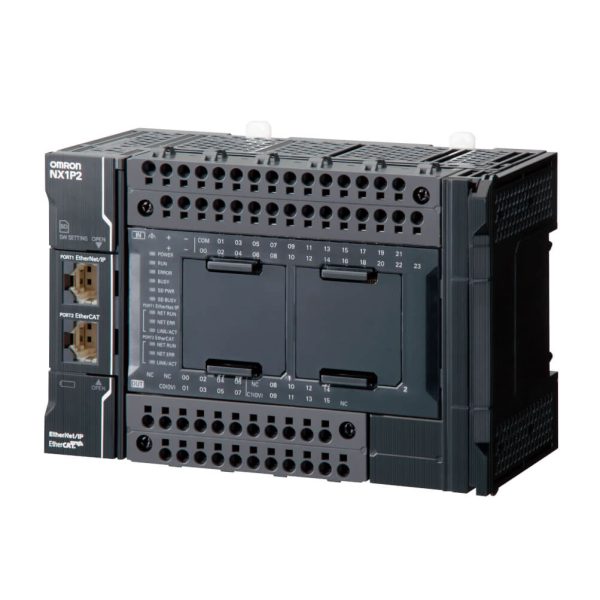

NX1P Machine Controller, 24/16 E/S Transistor (NPN), 2 ejes sincronizados + 4 ejes PTP
10 disponibles (puede reservarse)
1.335,75 € sin IVA - 1.616,26 € con IVA
10 disponibles (puede reservarse)
Comparte este producto:
| Primary task cycle time | 2 ms |
| Program memory | 1.5 MB |
| Variables memory | 2 MB |
| Max. number of synchronous axes | 2 |
| Max. number of PTP axes | 4 |
| Number of digital inputs | 24 |
| Input type | PNP/NPN |
| Number of digital outputs | 16 |
| Output type | NPN |
| Number of serial option boards | 2 |
| Max. number of expansion units | 8 |
| Max. number of remote I/O nodes | 16 |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Number of Ethernet ports | 2 |
| Number of USB ports | 0 |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Real-time clock | |
| Supply voltage DC | 20.4-28.8 V |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 148 mm |
| Product Depth (unpacked) | 71 mm |
| Product Weight (unpacked) | 650 g |
