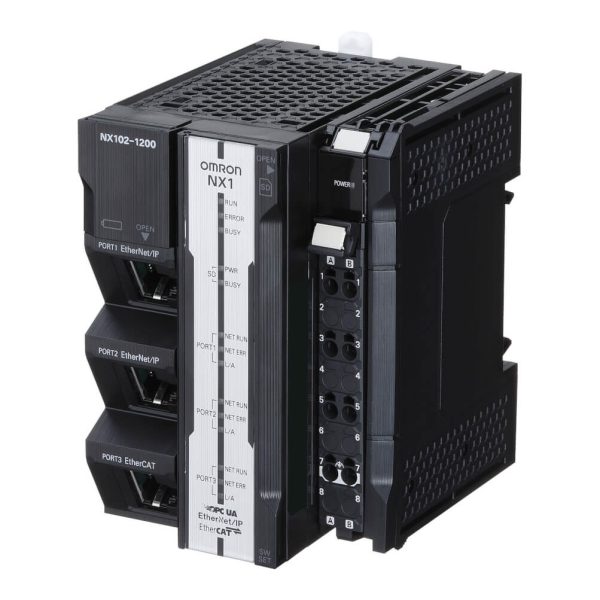

NX102 Machine controller, modular, 5 MB de programa y 33,5 MB de memoria de datos, EtherCAT incorporado (0 servoejes, 4 ejes PTP, 64 nodos EtherCAT en total), 2 puertos Ethernet (OPC-UA y EtherNet/IP)
10 disponibles (puede reservarse)
1.718,44 € sin IVA - 2.079,31 € con IVA
10 disponibles (puede reservarse)
Comparte este producto:
| Controller functionality | OPC-UA, Position control, Sequence control |
| Max. number of synchronous axes | 0 |
| Max. number of PTP axes | 4 |
| Max. number of axes (incl. virtual) | 4 |
| Primary task cycle time | 1 ms |
| Program memory | 5 MB |
| Variables memory | 33.5 MB |
| Communication port(s) | EtherCAT Master, EtherNet/IP, Ethernet TCP/IP |
| Communication option(s) | Serial RS-232C, Serial RS-422, Serial RS-485 |
| Max. number of remote I/O nodes | 64 |
| I/O system | NX I/O Bus |
| Max. number of expansion units | 32 |
| Product Height (unpacked) | 100 mm |
| Product Width (unpacked) | 66 mm |
| Product Depth (unpacked) | 100 mm |
| Product Weight (unpacked) | 470 g |
