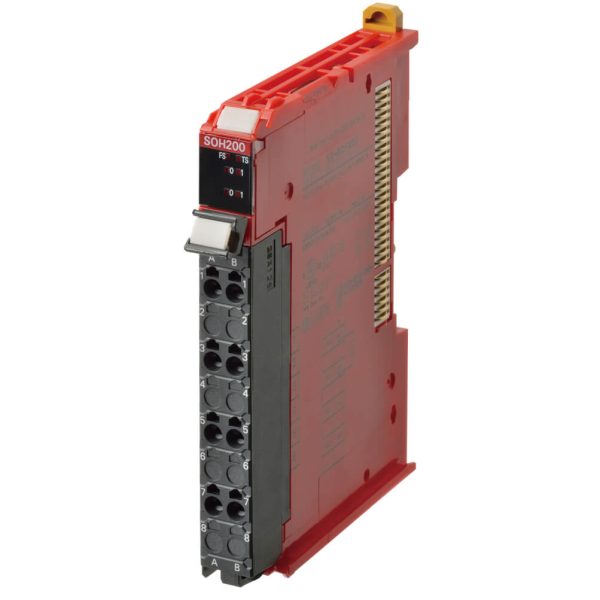

Unidad NX – 2 Salidas Digitales de Seguridad. PNP. 2 A/punto 4 A/total
10 disponibles (puede reservarse)
358,07 € sin IVA - 433,26 € con IVA
10 disponibles (puede reservarse)
Comparte este producto:
| I/O system | NX I/O Bus |
| Type of module | Safety I/O |
| Number of digital inputs | 0 |
| Digital input type | None |
| Number of digital outputs | 2 |
| Digital output type | PNP |
| Permitted voltage at output | 20.4-28.8 V |
| Output current | 2 A |
| Short-circuit protected outputs | |
| Connection method | 4-wire |
| Signal processing | Free running |
| IO-Link master | |
| I/O connection type | Push-in |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | 3 |
| Communication port(s) | None |
| Number of IOV (V+) terminals | 0 |
| Number of IOG (V-) terminals | 2 |
| Number of COM terminals | 0 |
| Degree of protection (IP) | IP20 |
| Product Height (unpacked) | 104.5 mm |
| Product Width (unpacked) | 12 mm |
| Product Depth (unpacked) | 80.1 mm |
| Product Weight (unpacked) | 90 g |
