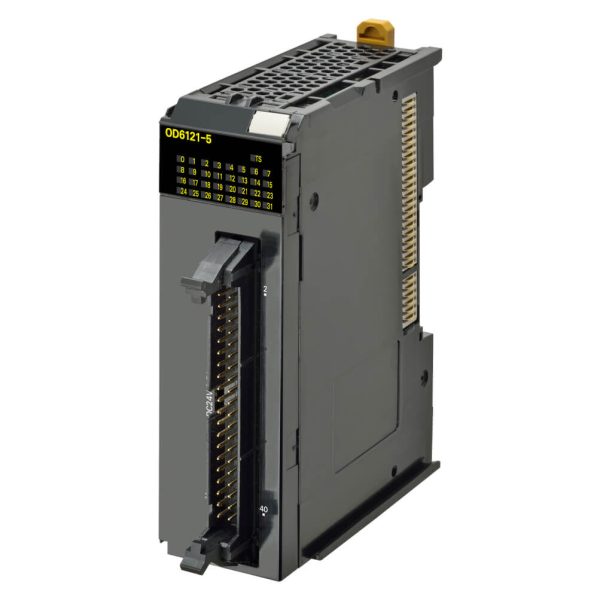

Unidad NX – 32 Salidas NPN Estándar – 30mm – MIL
Plazo de envío orientativo: 10 días laborables. Consulta disponibilidad.10 disponibles (puede reservarse)
253,99 € sin IVA - 307,33 € con IVA
10 disponibles (puede reservarse)
✓ Este producto admite el 3% de bienvenida. Condiciones
Comparte este producto:
| I/O system | NX I/O Bus |
| Type of module | Digital I/O |
| Number of digital inputs | 0 |
| Digital input type | None |
| OFF/ON delay | 0.1-0.8 ms |
| Number of digital outputs | 32 |
| Digital output type | NPN |
| Permitted voltage at output | 15.0-28.8 V |
| Output current | 0.5 A |
| Short-circuit protected outputs | |
| Connection method | 1-wire |
| Signal processing | Free running, Standard speed, Synchronous |
| IO-Link master | |
| I/O connection type | MIL (plug not included) |
| Number of I/O connectors | 1 |
| Detachable I/O connector | |
| Suitable for safety functions | |
| SIL according to IEC 61508 | None |
| Communication port(s) | None |
| Number of IOV (V+) terminals | 4 |
| Number of IOG (V-) terminals | 4 |
| Number of COM terminals | 0 |
| Degree of protection (IP) | IP20 |
| Product Weight (unpacked) | 135 g |
Consúltanos disponibilidad, cantidades o detalles técnicos del producto.
