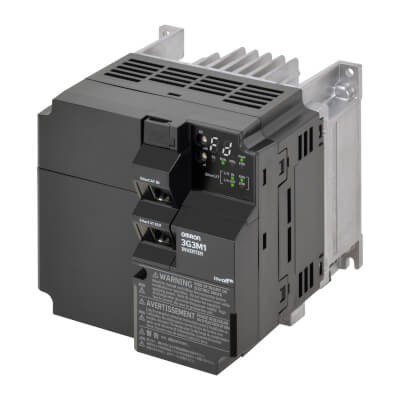

Especificaciones del Variador M1 AC

  • 2,2/2,7 kW (HD/ND)
  • 11/12 A (HD/ND)
  • 200 Vca
  • Entrada 1~
  • Control OLV/CLV
  • EtherCat
  • STO (FSoE + cableado)
  • Frecuencia de salida máx. 590 Hz

10 disponibles (puede reservarse)

496,57  sin IVA - 600,85  con IVA

10 disponibles (puede reservarse)

Quantity
    EAN: 4549734764568 SKU 709225 Categorías , , Marca:
    Omron

    Comparte este producto:

    Descripción

    Especificaciones del Variador M1 AC

    • Drive control method: Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control
    • Drive supply voltage: 230 V single phase
    • Max. motor output at constant torque: 2.2 kW
    • Max. motor output at variable torque: 2.7 kW
    • Built in EMC filter: (No data provided)
    • Degree of protection (IP): IP20
    • Compatible motor type: Induction or asynchronous motor, Permanent magnet motor
    • Communication port(s): EtherCAT Slave, USB
    • Product Height (unpacked): 130 mm
    • Product Width (unpacked): 140 mm
    • Product Depth (unpacked): 156 mm
    • Product Weight (unpacked): 1700 g
    • Finless type: (No data provided)
