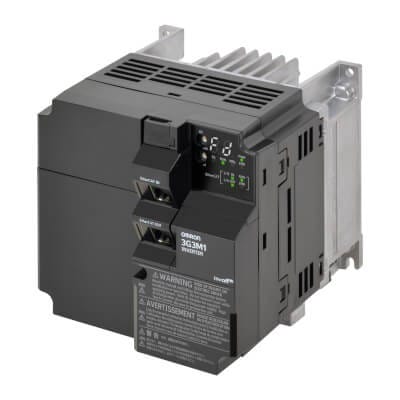

Especificaciones del Variador M1 AC

  • 4,0/5,5 kW (HD/ND)
  • 9,2/11,1 A (HD/ND)
  • 400 Vca
  • Entrada 3~
  • Control OLV/CLV
  • EtherCat
  • STO (FSoE + cableado)
  • Frecuencia de salida máx. 590 Hz

10 disponibles (puede reservarse)

745,63  sin IVA - 902,21  con IVA

10 disponibles (puede reservarse)

Quantity
    EAN: 4549734764636 SKU 709214 Categorías , , Marca:
    Omron

    Comparte este producto:

    Descripción

    Especificaciones del Variador M1 AC

    • Drive control method: Closed loop V/f, Closed loop vector, Open loop V/f, Open loop vector, V/f control, Vector control
    • Drive supply voltage: 400 V three phase
    • Max. motor output at constant torque: 4 kW
    • Max. motor output at variable torque: 5.5 kW
    • Built in EMC filter: (No data provided)
    • Degree of protection (IP): IP20
    • Compatible motor type: Induction or asynchronous motor, Permanent magnet motor
    • Communication port(s): EtherCAT Slave, USB
    • Product Height (unpacked): 130 mm
    • Product Width (unpacked): 140 mm
    • Product Depth (unpacked): 156 mm
    • Product Weight (unpacked): 1800 g
    • Finless type: (No data provided)
